Mod. MB 124
• Production capacity n. 30 cones 6” inch travel ( 152 mm. ) , maximum diameter 250 mm., conicity on 5° 57’
• Waxing device and Yarn-tension adjustment.
• Automatic stop in case of yarn breakage.
• Suction system for fibres separated from the yarn during teaseling.
• Stopping machine at yarn meter counter required .
• Production speed variable from 45 m/min to 200 m/min.
• Alternated movement of the yarn guide bar, to permit uniform wear of the fillets on the raising cylinder.
• Magazine creel with 60 places.
• Installed power kw 7.
• Year of c. 1992 .
Delivery on Nº 30 thread , cheese package , waxing device and yarn-tension adjustment , automatic stop in case of yarn breakage , suction system for fibres separated from the yarn during teaseling , stopping machine at yarn meter counter required , magazine creel with 50 places ,
with Nº 24 heads , feeding by cone with automatic cone change ( 240 mm. diameter max ) , pitch 6″ (152 mm) , conicity 4°20′ , drum diam 94 mm. 2 turns asymmetric step , 2 section yarn stretcher + waxing device , automatic joint yarn Splicer Mesdan mod. 490 L , Nº 1 trolley automatic bobbins doffing , Nº 1 automatic magazine cone reserve , Computer Alfa-Panel to set speed , yarn length on package and to control/monitor all the winding process , electronic yarn clearers Uster UPC mkc20 , Magitex Blower , – Lightening along the machine , Year 1998 .
year 1999 , combs head with rotary flange drive , feeding creel 08 positions by cans , delivery 2 slivers in 2 cans 600 x 900 with automatic doffing ,
year 2000 , n. 18 positions , delivery 6 “ x 4º20′ , drum diameter 86 mm. 2 turn symmetric , automatic doffing , waxing device , steam by electric resistance , blower device .
Steel inox , under vacuum and under pressure , 138 º max temperature working programmer , Internal capacity n. 3 trolley , internal dimensions : diam. 1300 x 3185 mm. , 4975 liters , steam feeder by electric boiler year 2011 ( very less used ) 60 kw equipped with 4 resistors ( 15 kw each/1 ) , water filter ;
n.72 spindles , single frame , hollow spindle , double independent drafting line , feeding from sliver by cans or bobbins , or by cones yarn , two delivery options : on spools h. 450 mm. ring diameter 105 mm. – or on cones pitch 8’’ ( travel 200 mm. – cones of 225 mm. ) x conicity 3°30’, Electronic panel to set fancy effects , year of construction 2004 ,
n.42 spindles , single frame , hollow spindle , double independent drafting line , feeding from sliver by cans or bobbins , or by cones yarn , two delivery options : on spools h. 450 mm. ring diameter 120 mm. – or on cones pitch 8’’ ( travel 200 mm. – cones of 225 mm. ) x conicity 3°30’, Electronic panel to set fancy effects, year of construction 2015 ,
–
with 160 spindles ( single frame ) , ring diam. 100 mm. , tube H. 450 mm. , Hight draft pendulum arms ( composed by 1 feeder top cots roller , 2 elastic cots rollers besh , 1 release top cots roller ) , feeding by cans , yoc 1980
N. 03 Combing machine Sant’Andrea , type P 90 ,
year 1993 / 94 ,
crimping device , feeding creel 24 positions by cans ,
delivery 1 sliver in 1 can 800 x 1000 mm.
Nº 01 Bale Openers , brand BONINO , w.w. 2.000 mm. ;
Nº 01 Bale Cutting Breaker , brand ROLANDO , w.w. 1.000 mm. ;
Nº 01 Rotary Cutting machine , brand ROLANDO , w.w. 600 mm. ;
Nº 01 Rotary Cutting machine , brand ROLANDO , w.w. 400 mm. ,
Nº 01 Opener Carding Willow machine , brand ROLANDO , w.w. 1.500 , with Condenser Feeding ;
Nº 01 Carding Machine , brand F.O.R. Biella , w.w. 2.500 mm. ;
N º 01 Carding Machine , brand OCTIR ,w.w. 2.500 mm. ;
Nº 02 Automatic Vertical Baling Press Fibers , brand Gualchierani ;
nº 08 Needle Head machines , brand Officina DLF ( Prato Italy ) , with nº 10 position each/ 1 mc. , suitable to produce tape ribbon yarns , fringed chains and cut yarns ( tagliatino – catenella – fettuccia ) , delivery on cones 6″ x 5º57′ , inverter to speed set , year 2000/2001 , good condition of maintenance .

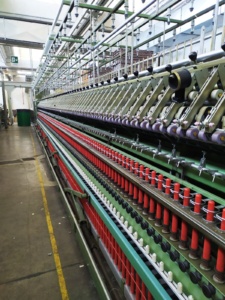

n. 04 Ring spinning frame ZINSER 421, with 580 spindles e/1 , year 1992 nicely maintained , ring diam. 51 mm. J11.1 , h. tube 260 mm. , gauge 82,5 mm. , automatic spools doffing , draft SKF PK 1601 , blower Electrojet ;
N. 01 Bale press ” CODORO ” machine brand , year 2012 , very less used like new , dimension box 80 x 80 x 80 CM. ; approximate bales weight 100 kg.
Nº 01 Gill Box Drawing Frame , brand MACKIE , mod. Speedmack , with autoleveller , combs head with chain drive, feeding creel 10 positions by cans , delivery 1 sliver in 1 can 1000 x 1200 mm. . with auto doffing can , inverter to speed set , Year 1992 .
Nº 01 Gill Box Drawing Frame , brand MACKIE , mod. Speedmack combs head with chain drive, feeding creel 10 positions by cans , delivery 2 slivers in 2 cans 700 x 1200 mm. . with auto doffing can , inverter to speed set , Year 1992 .
Nº 01 Gill Box Drawing Frame , brand MACKIE , mod. Speedmack , combs head with chain drive, feeding creel 10 positions by cans , delivery 4 slivers in 4 cans 450 x 1000 mm. , Year 1989 .
Nº 01 Gill Box Drawing Frame , brand MACKIE , mod. Speedmack ,combs head with chain drive, feeding creel 10 positions by cans , delivery 4 slivers in 4 cans 450 x 1000 mm. , Year 1989 .
N.01 Steamer Machine , brand OBEM Biella ,
steam by electric resistance ( boiler fully overhauled on 2018 ) , electrical panel with work cycle time temperature , capacity 1 trolley ;
Nr. 02 Chenille yarn machine , brand : GIGLIOTTI & GUALCHIERI mod. ACTA , n.01 mc x 64 spindles , n. 01 mc. x 32 spindles , ring diam. 127 mm. tube height 450 mm. external feeding creel, rotary blade, Electrojet blower, Y.O.C. 1997 , nicely maintained ;
N º 01 Carding machine F.O.R. Biella , w. width 2500 mm. , silo feeder , fibers weight device , pre-avantrén , roll conveyor , 1º drum with 4 workers and strippers , 2º drum with 4 workers and strippers , volante , doffer , delivery two tapers in two cans 1000 x 1200 mm. ;
Nr. 02 cone winder ATTUCCI , with nº 9 heads each /1 , pitch 10” (250 mm), cylindrical or conical tubes , speed control by means of display , yarn over feeder device , electronic yarn meter counter , stop head to diameter required , feeding by internal creel , suitable for spools or bobbins , YOC 1 x 1999 , 1 x 1998 . Fully refurbished
N. 01 High Shrinking Bulking machine Motocono , Mod. H.B.I. ,
Year 2001, 52 independent heads , stainless steel steam chambers and belts ,
external feeding creel (top/tail ) ,
Electronic speed control , electronic steam regulation control ,
yarn detector reserve by photocell outout ;
Link with :
N. 01 Cone winder Motocono , year 2001 ,
n. 52 heads , delivery pith 6” (152 mm.) , conicity 5º57’ ,
2 section yarn stretcher , waxing device , yarn overfeeder device ;
we can sell smaller modules ( depending on your need ) , starting from a minimum of n. 08 positions ;
nº 01 Woolen carding machine brand Bostalo ( copy of Thibeau ) w. width 2000 mm. , silo feeder , fibers weight device , pre-avantrén , roll conveyor , 1º drum with 5 workers and strippers , n º 2 morell , nº 2 burring device ( slappolatore ) , 2º drum with 6 workers and strippers , doffer , delivery on sliver 1 can 700 x 1200
Intersecting Drawing Frame Sant’Andrea mod. SHS 24
– feeding creel 12 x 2 doubling by cans
– elastic ballon rollers + herisson head ,
– automatic delivery 4 slivers into 2 cans diam. 700 x 1000
– year of construction 1992
Nº 01 Bumps press , brand St. Eloi ( France ) automatic knotter , year 1995 , in excellent condition of maintenance ,
Ball Winder CAMPANINI Model SCT240.12C
Year 2004 , with 12 Spindles with N.3 Sets of spindles , programmable and adjustable speed from 50 to 1200 rpm by inverter , device to change automatically the winding cycle period to make the balls more or less fluffy, machine suitable to produce balls of wool, acrylic, blended, fancy yarns and similar fibers , balls weight from 20 to 250 gr. ;
n. 01 Air Compressor CompAir Hydrovane , mod. 258 , direct drive rotary vane , year 2002 ( excellent condition very little used ) , KW 45, Perkinson powered 1450 rpm , auto unloaded valve , integral aftercooler , press bar 12 , M3/min 7,33 ;
combs head with chain drive , feeding creel 12 positions by cans , delivery 2 slivers in 1 can 700 x 1200 mm. with auto doffing , Year 1984
Nº 01 Automatic Winder MURATA Mach Mini , single head , delivery pitch 6” (152 mm.) taper 5º57′ , electronic clearers Peyer PI 121 ,waxing device , round magazine from 12 residual cones / warping cones (max diam. 120 mm.), fisher man knotter , stop head to diameter required ;
Automatic Winder Murata , Mach Mini , single head , delivery pitch 6” (152 mm.) taper 4º20′ , electronic clearers Peyer PI 121 , waxing device , round magazine from 24 spools feeding ( max diam. 58 mm. , Splicer , electronic yarn meter counter
N.01 Blending drawing frame Sant’ Andrea , 2M , year 1998 , 2 defelting combs head VSN with screw drive , 1 reducing intersecting head DSN with pinned rollers , feeding creel 24 positions by bobbins and cans , ensimage device , delivery 1 sliver in 1 can 800 x 1000 mm. with automatic doffin
N. 02 woollen spinning frame GAUDINO F2K ,
140 spindles each /1 , single drive , single frame face ,
false-twist device with spiral needles ,
ring diam. 160 mm. tube H. 600 mm. , year 1987 ;
N.01 Gill Box Cognetex , mod. SC 420 11 VA, year 1995, autoleveller ,
combs head with rotary flange drive , feeding creel 6 positions by bobbins or cans , delivery 1 sliver in 1 can 800 x 1000 with automatic doffing .
N.01 Gill Box Cognetex , mod. SC 420 22 V ,year 1995 ,
combs head with rotary flange drive , feeding creel 10 positions by cans ,
delivery 2 slivers in 2 cans 800 x 1000 with automatic doffing ,
1 LAFER fringing ( flecadora para frazadas )
type FRV 3000
working width 300 cm
year 2001
cloth speed 40 m/ min.
with automatic device for threading of yarn into the fringes-binding needle
installed power 4 kW
N.01 Shrinking bulking SUPERBA mod. Univap,
with n.10 individual belts ,
external feeding creel top/tail ,
stainless steel steam chamber ,
electronic speed control ,
electronic steam set-up ,
yarn detector reserve by photocell output ,
year 2001
Nr. 01 Fancy yarn twisting BIGAGLI mod. BR1 ,
with nr. 84 spindles (single side) ,
hollow spindle , Sampre draft ,
electronic programmer PC to set fancy effects and video data processing
feeding by slivers or by bobbins yarn with external feeding creel ,
ring diameter 140 mm. ,delivery on tubes h. 450 mm.,
year o.c. 1998,
N. 500 tubes for spindle h 450 mm – n.90 Flanged tubes for hollow spindle
Complete line textile waste opening raw material , composed by :
Nº 02 Garnett , brand : F.O.R. ( Biella )
feeder, entry cylinders,breast, 3 carding drums , doffer, working width 1500 mm.
Note: metallic card clothing on good condition , n. 2 drums e n. 10 workers as spare parts ;
Nº 01 Thread stretchers / pickers machine , w.w. 600 mm. , brand F.O.R ( Biella )
Nº 01 Cuttering guillotine machine , w.w. 400 mm. , brand Gamba ( Biella )
Nº 01 CORGHI HANK-TO-CONE WINDER,
WITH 04 HEADS ,
TAKE UP PACKAGE ON TRAVERSE 6” (152mm),
CONICITY 5°57’,
MECHANICAL SLUB CATCHER WITH MICROMETRIC CHECK SYSTEM ,
WAXING DEVICE ,DOUBLE YARN TENSIONER ,
OVER-FEEDER,SWIFT WIDTH 240 mm (1 KILO HANK WT),
SWIFT CIRCUMFERENCE FROM 1100 TO 1800 mm. ,
N. 01 Cone Winder Corghi,mod. RE ,
with n. 04 independent heads , one motor each head ,
yarn thread-guide, pitch 6” inch, conicity 5º57′, expansion mandrel ,
waxing device , stop cone to diameter required by microswich .
Nº 06 SAVIO HANK-TO-CONE WINDER, REBUILT IN 2005
MODEL DPS , WITH 30 HEADS / 1 (180 HEADS TOTAL)
SINGLE SIDE , INDIPENDENT HEADS ,
ONE MOTOR EACH HEAD ,
SLOW START SPEED WITH INVERTER ,
TAKE UP PACKAGE ON TRAVERSE 6” (152mm),
CONICITY 5°57’,
MECHANICAL SLUB CATCHER WITH MICROMETRIC CHECK SYSTEM ,
WAXING DEVICE ,DOUBLE YARN TENSIONER ,
OVER-FEEDER ,SWIFT WIDTH 280mm (1 KILO HANK WT),
SWIFT CIRCUMFERENCE FROM 1100 TO 1800 mm. ,
YEAR: REBUILT 2005 – MACHINES IN EXCELLENT CONDITION OF MAINTENANCE
N. 01 Autoconer SCHLAFHORST 238 Typ 146 ,
year 1992 , n. 30 Heads ,
delivery on 6″ ( 152 mm. ) taper 4°20′,
automatic package doffing by 1 trolley ,
cones reserve with individual cradles each head ,
feeding from big spools till 600 mm. high ,
electronic clearers Loepfe YM TK 750 ,
waxing device , THERMO Splicer ,
Conometer , Informator to set data , travelling blower .
Fully overhauled
N. 01 Double twisting SAVIO mod. TDS 15 NR ,
year 1992 , with n. 240 spindles ,
gauge 212 mm. ,double drive , two independent frames ,
package lifting to yarn breaks,
feeding package 2 x 6″ soleil or by assemly winder bobbin 8″/10 inch ,
diam. 165 mm. from assembly winder,
delivery 6’’ ( 152 mm. ) conicity Biko / 5º57′ ,
pneumatic yarn thread in,
blower Magitex .
Nicely maintained
N. 01 Semi worsted ring spinning frame Gaudino ,
model FPK 8 C ,
Year 1992 ,
with 216 Spindles ,
ring diam. 90 mm. , tube H. 450 mm. ,
single drive , single frame ,
High draft pendulum arm with 8 cylinders ,
feeding by slivers on cans .
N º 01 Carding machine OCTIR , working width 2500 mm. ,
silo feeder , fibers weight device , pre-avantrén , roll conveyor ,
1º drum with 6 workers and strippers , n º 2 morell , nº 2 burring device ( slappolatore ) ,
2º drum with 6 workers and strippers , volante , doffer , delivery bobbin
N.01 Vertical Finisher Sant’ Andrea , RF 2B , year 1998 ,
24 bobbins , automatic tube loader, automatic bobbins doffing , tube length 330 mm.
N. 01 Cone winder , Motocono ,
8 position , take up 6″ x 5º57′ ,
waxing device , year 1998 ;
N. 01 Assembly winder O.M.P. Bodega , Y.o.c. 1990 ,
With nº 12 single head ,
travel 8″ inch , tube diam. 43 mm.,
2 ply feeding by internal creel with BTSR electronic yarn detectors ,
electronic yarn meter counter head x head ;
Nr. 01 Automatic winder Savio Espero M , n. 28 heads , take-up package on traverse 6” (152 mm.), conicity 4°20’, grooved drums diam. 94 mm. , knotter air Splicer Mesdan 490L, double pneumatic yarn tensioner, waxing device, clearers Peyer 531 , feeding by external creel suitable for big spools or cones , automatic doffing, inspector control, illumination along the machine, travelling blower Magitex, Y.O.C. 1994.
Nr. 01 Automatic winder Savio Espero mod. E, n. 28 heads , take-up package on traverse 6” (152 mm.), conicity 4°20’, grooved drums diam. 94 mm. , knotter air Splicer Mesdan 490L, double pneumatic yarn tensioner, waxing device, clearers Peyer 531 , automatic spools feeding (smart-feeder type) automatic doffing, inspector control, illumination along the machine, travelling blower Magitex, Y.O.C. 1994.
N. 01 Double twisting SAVIO mod. TDS 15 N ,
year 1987 , with n. 170 spindles ,
gauge 212 mm. ,double drive , two independent frames ,
package lifting to yarn breaks,
feeding package 8″ , bobbin diam. 160 mm. from assembly winder,
delivery 6’’ ( 152 mm. ) conicity 4º20′ ,
pneumatic yarn thread in,
blower Magitex .
Excellent condition of maintenance , still running .
N.02 STRAYFIELD radio frequency dryer ,
suitable for cones or hanks , mod.SS040TB ,
40 KW , year of construction 1990 ,
Excellent condition , little used machines ;
Nº 02 Woollen Spinning Frame Gaudino FST 350 ,
252 spindles each /1 , single drive , single face , selfstiro ,
false-twist device with spiral needles ,
ring diam. 75 mm. tube H. 350 mm. ,
year 1992
N. 01 Assembly – Twisting machine GALAN
with n. 160 Spindles ( 80 x 2 ) , double independent side ,
ring diam. 150 mm. , H. Tube 600 mm. , external feeding creel ,
4 ply , stop spindle feeding to break or lack yarn ,
year 1990 ;
Spindles tube included.
Nº 01 Reeling machine Tintori , mod. Vanguard 50 MX ,
single side , swift lenght 5 meters , external feeding creel ,
stop side to break yarn by casse fils,
currently being prepared per 50 hanks , Y.O.C. 1987
N. 02 Shrinking and high bulking winder Savio RRS Volufil ,
delivery 6 “ x 4º20′ , automatic doffing , waxing device ,
steam by electric resistance , blower device ,
1 x 24 position and 1 x 18 posiyion , year 1992 ;
N. 01 Semi worsted ring spinning frame Gaudino FPK 8 C ,
Year 1992 , with 180 Spindles ,
ring diam. 75 mm. , tube H. 350 mm. ,
single drive , single frame ,
High draft pendulum arm with 8 cylinders ,
feeding by slivers on cans .
Nº 01 Cuttering machines , brand : GAMBA – Biella ,
w. width 1500 mm. , year 1990
N. 01 fancy yarn twisting machine PA-FA mod. Legafil S200 R,
with n. 36 heads ,
– doublé independent hollow spindle ( drived by 2 independent tangencial belt ,
they can rotate in the same direction to increase the twist (example : S on S, or Z on Z)
or turn one reverse of the other to reduce the twist (example : the first hollow spindle rotate in the direction Z and the second direction S or vice versa ) ,
– double independent drafting line ,
– feeding from sliver by cans or bobbins , or by cones yarn ,
– delivery on cones pitch 8’’ ( travel 200 mm. – cones of 225 mm. ) x conicity 3°30’,
– Electronic panel to set fancy effects,
– Y.O.C. 2000.
Nr. 01 Fancy yarn twisting Saurer-Allma mod. FM-F ,
with nr. 80 spindles ( 40 x 2 sides ) ,
hollow spindle , SKF draft ,
electronic programmer PC to set fancy effects and video data processing
feeding by slivers or bobbins yarn with external feeding creel
ring diameter 110 mm.
delivery on tubes h. 450 mm.
year o.c. 1993
Supply included : Nº 01 Cops winder x flanged hollow spindles bobbins Delta Rof with 12 position ;
n. 300 tubes for spindle h 450 mm – n.120 Flanged tubes for hollow spindle
Nº 01 Cone to cone winder SAVIO ESPERO RL ,
with Nº 32 heads ,
feeding by cone with automatic cone change,
pitch 6″ (152 mm) , conicity 5°57′ ,
drum diam 94 mm. 2 turns asymmetric step ,
2 section yarn stretcher + waxing device ,
automatic joint yarn Splicer Mesdan mod. 492 Aquasplicer or 490 L ,
Nº 1 trolley automatic bobbins doffing ,
Nº 2 automatic magazine cone reserve ,
Computer Alfa-Panel to set speed , yarn length on package and to control/monitor all the winding process ,
electronic yarn clearers Loepfe YM 840 ,
Magitex Blower ,
lightening along the machine ,
Year 1997 .
Intersecting Drawing Frame Sant’Andrea mod.SHS 24
– feeding creel 16 doubling by cans
– herisson head ,
– automatic delivery 4 slivers into 2 cans diam. 700 x 1000
– year of construction 1990
N, 01 Assembly winder RITE , mod. ARS ,
with n. 32 heads ,
traverse 6 ” ( 152 mm. ) , cylindrical tube 170 x 43 mm. ,
feeding by external creel 3 ply ,
PLC to set working data and electronic yarn meter-counter ,
blower Magitex , year 1999 .
N. 01 Assembly winder FADIS mod. TUAN BE , Y.o.c. 1990 ,
With nº 12 single head ,
adjustable travel 6″ / 7″ / 8″ inch ,
tube diam. 43 mm.,
2 ply feeding by internal creel ,
electronic yarn meter head x head ;
N. 01 Autoconer SCHLAFHORST , 338 Typ D ,
year 1998 , n. 30 Heads ,
delivery on 6″ ( 152 mm. ) taper 4°20′,
drums 2 assymetrical turns , automatic package doffing by 1 trolley ,
cones reserve with individual cradles each head ,
automatic spools feeding with 1 preparation station ,
electronic clearers Loepfe YM TK 930 F ( foreign fiber control ) ,
waxing device , THERMO Splicer , Yarn tension sensor (autotense) ,
Informator to set data , travelling blower Jacobi .
N.02 Combing machine C.S.M. , type 1606 ,
year 1 x 1996 , 1 x 1997 ,
crimping device , feeding creel 24 positions by cans ,
delivery 1 sliver in 1 can 1000 x 1200 mm.
N. 01 Automatic Woollen Set Carding machine brand : F.O.R. ( Biella ) ,
working width 2500 mm .
Feeder , Weight device ,
Rouletabosse , Avant-Train + 3 Carding Group ,
Peralta , Over-ground conveyor ,inlet unit ,
Double frottage tape condenser with single string ,
192 good ends, Divisor 11,8 mm.,
Powered by CA motor , Upgrade with Inverter to speed Set .
N. 01 double twisting (2×1) VOLKMANN mod. VTS 07 , Bauart 5.95 ,
with Nº 176 spindles , double side ( 80 x 2 ) , single drive ,
feeding 8 ” inch , diam. 180 mm. ,
delivery on cones 6 ’’ ( traverse 152 mm. ) , conicity 4º20′ ,
pneumatic thread-in volcojet , soft cones device ,
waxing device , inverter to speed set ,
travelling blower Nevenhauser , Y.O.C. 1995 ;
N.01 Blending draving frame Cognetex , MBC ,
year 1986 , 2 defelting head with rotary combs drive,
1 reducing intersecting head with rotary combs drive ,
feeding creel 24 positions by bobbins and cans , ensimage device ,
delivery 1 sliver in 1 Bobbin with automatic doffing .
Steamer machine CIMI ,
under vacuum , 98º ,
with electrical steam producer devive ,
year 1995 .
N. 01 Cone to cone winder , Motocono ,
48 position , take up 6″ x 5º57′ ,
waxing device , Blower Electrojet , year 1998
N. 01 Fancy yarn twisting machine
Saurer Allma mod. ESP-FX ,
nr. 36 spindles , hollow spindle , feeding by yarn with external creel ,
delivery on cone pitch 6″, conicity 4°20′, Y.O.C. 1988 , fully overhauled ;
N. 01 SEYDEL 682 L – stretch breaker tow to tops ,
year manufacture 1988
heater plates, csr steamer,
delivery 800 mm x 1000 mm can coiler ,
we are in process to overhauled the machine on our workshop
Nº 01 Steaming machine Obem ,
under vacuum , under pressure ,
143º , 3 bar , 9236 lt. ,
capacity 3 trolley ,
control panel to set steam process time/temperature ,
year 1990 ,
complete with its own steam generator (diesel fuel boiler)
